Category Name
Motorcycles
Color
Radical White , Dark Purplish Metallic Blue
ENGINE
4-stroke, liquid-cooled, SOHC, 3-valve, single
TRANSMISSION
Fully automatic CVT
FUEL CAPACITY
4.5 litres (1.0 Imp. gal.)
WET WEIGHT
91kg (201 lbs)
FINAL DRIVE
Enclosed V-belt / Spur gear
Description
|
HIGHLIGHTS |

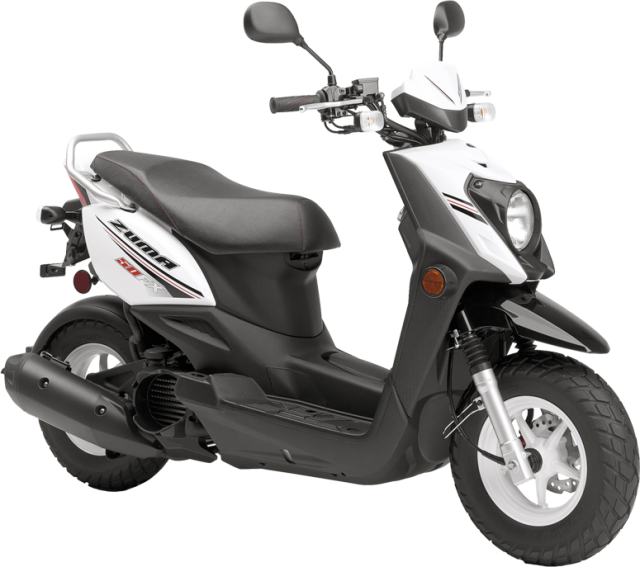

| Check out the fun loving Zuma X scooter. Based on the proven BW’s50F platform, the Zuma X includes all of the BW’s great features including its incredible fuel economy, in a package that is highlighted by its eye-catching “supersport styling”. Fun has never been so affordable or stylish. |
|
ENGINE
49cc, liquid-cooled, SOHC, 3-valve, fuel injected, 4-stroke engine produces peppy, easy to use power with incredible fuel economy. The concept of this environmentally friendly engine is solid performance with low emissions and excellent fuel economy. |
|
STORAGE
Spacious 23 litre, lockable under seat storage can hold selected full-face helmets or other items like a backpack, laptop computer, rain suit etc. |
|
FUEL ECONOMY
Fuel consumption of approximately 55 kilometres per litre or 158 miles per gallon (imp.). Your actual consumption may vary. |
|
ENGINE |
-
49cc, liquid-cooled, SOHC, 3-valve, fuel injected, 4-stroke engine produces peppy, easy to use power with incredible fuel economy.
-
Fuel consumption rating of approximately 55 kilometers per litre or 158 miles per gallon (imp.). Your actual consumption may vary.
-
Fast, dependable electric starting
-
Fan-assisted, liquid-cooling.
- maintains consistent engine temperatures even in stop & go traffic
- liquid-cooling allows for a higher state of tune & performance
- reduces mechanical engine noise
-
Maintenance-free transistor controlled ignition (TCI).
- produces a strong spark for fast starts
- provides precise ignition timing / mapping for optimum engine performance at all rpms
-
3- valve cylinder head.
- utilizes two intake valves & one exhaust valve
- excellent breathing efficiency & excellent fuel economy
-
Roller rocker arm valve actuation.
- specially designed roller rocker arms reduce friction for increased power
- reduce mechanical engine noise for a quiet, enjoyable ride
-
Intake & exhaust valves feature a special "carbon cutter" design.
- automatically removes carbon build up from the valve stems
- maintains maximum engine efficiency & power, even during extended slow speed use
- (carbon build up on valve stems can lead to sticky valves & poor performance)
-
Lightweight, aluminum cylinder features ceramic composite plating on the cylinder bore.
- insures uniform heat dissipation
- reduces internal friction & weight
-
Lightweight crankshaft with carburized connecting rod & lightweight forged aluminum piston.
- optimizes engine performance & provides fast throttle response
- excellent durability (carburization is a heat treating process that increases the strength of steel)
- reduces mechanical vibration
-
19 mm, "closed loop" throttle body fuel injection system.
- excellent fuel & good throttle response
- "closed loop system" uses an oxygen sensor to "sniff" spent exhaust & automatically adjust the fuel / air ratio for reduced emissions
- fuel injection benefits include choke-free starting, steady idling during warm up, excellent fuel economy & reduced emissions
-
Zuma X uses regular 87 octane gasoline.
-
Easy access, paper-type air filter is used. Air box design reduces intake noise.
-
Centrifugal oil filtering system.
- automatically removes any particles found in the oil
- never requires cleaning or maintenance
-
Fully automatic CVT transmission (CVT = constantly variable transmission).
- "twist-the-throttle-and-go" operation
- no clutch lever or gear shifting involved... the transmission is fully automatic.
-
Environmentally responsible exhaust system produces a very quiet exhaust note.
- muffler contains dual honeycomb-style catalytic converters
-
Air induction System (AIS) is used to further reduce harmful exhaust emissions.
- AIS system injects fresh air into the exhaust to ensure complete fuel combustion
- also helps to maximize the function of the catalytic converters
|
|
CHASSIS/SUSPENSION |
-
Rugged "underbone-style" steel frame.
- makes getting on & off the BW's easy
-
Wheelbase, centre of gravity, weight distribution & tire design, have all been engineered to provide light, agile handling and great manoeuvrability.
-
26 mm front fork with 58mm (2.3") of wheel travel.
- rubber fork gaiters / boots extend service life of fork seals & protect inner tubes from chips
-
Single shock unit swingarm rear suspension.
- 56mm (2.2") of wheel travel
- good ride quality
-
Lightweight, rugged 5-spoke aluminum "mag" wheels with wide, tubeless tires.
- wide, aggressive, tubeless 120/90-10 tires front & rear
- tires well suited for rough, "pot holed" urban roadways
- tires provide lots of grip & help create Zuma X's fun look.
-
180 mm front disc brake with single piston caliper.
- "wave style" rotor adds style
- excellent stopping power
-
Rear drum brake.
- good stopping power
- fast & easy wear compensating adjustment via wing nut adjuster
-
Both front & rear brakes are hand-operated like on a bicycle... making riding simple & fun.
-
Wide floorboard & front leg cowl.
- good splash & wind protection
-
Instrumentation includes: speedometer, odometer & fuel gauge.
- also warning lights for coolant temperature, high beam, turn signals & engine warning light
-
Spacious, 23 litre, lockable under seat storage.
- can hold selected full-face helmets
- or everyday commuter items like rain suit, laptop, briefcase, etc.
-
Plush seat provides excellent comfort and plenty of room.
-
4.5 litre fuel tank with locking gas cap.
- accessed via a panel on the "foot tunnel"
|
|
DETAILS |
- Handy front mounted storage pocket for small items like cell phone or wallet.
- Front mounted folding hook for additional carrying convenience, perfect for bags & handbags
- Cool, race inspired hand grips.
- Stylish clear turn signal lenses
- Rear fender extension reduces road splash
- Easy-to-use centre stand
- Easy access oil level dip stick
- Side reflectors enhance visibility
- Low maintenance, sealed battery (battery should be charged during winter storage)
|
